XC-505/P

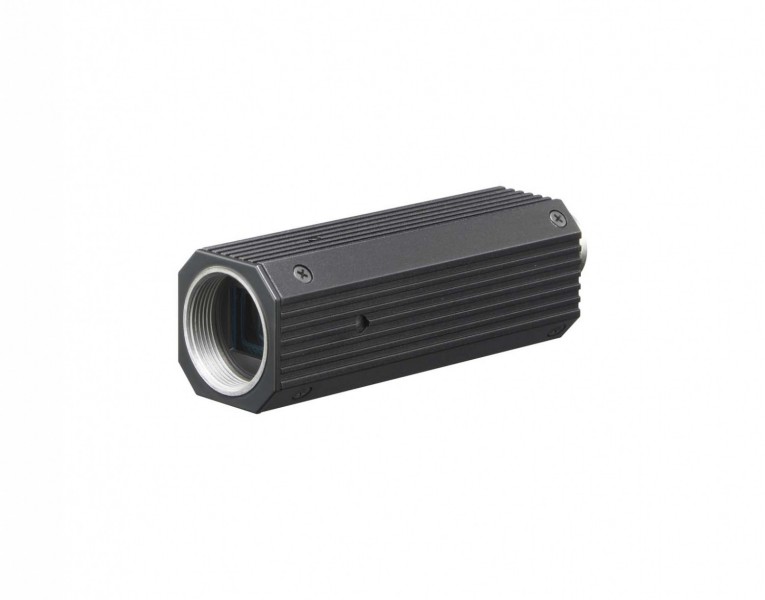

The XC-505 and XC-505P are ultra-compact and lightweight colour video cameras incorporating a high-sensitivity, high-performance 1/3-type Super HAD II CCD.

Compared to Sony’s popular XC-555 camera, the XC-505 and XC-505P are equipped with several new features including one-push white balance, noise reduction (2D/3D), a built-in colour bar, DTL function, and RS-232C support.

These cameras use an NF lens system which can easily be converted into a flexible C-mount lens. What’s more, they are simply integrated into space-restricted environments thanks to their one-piece compact and robust body.

The combination of first-class picture quality with superb sensitivity for less-than-ideal lighting conditions makes these cameras ideal for a wide range of applications such as remote monitoring, security, content creation, machine vision, and sports shooting.

Features

High-sensitivity Super HAD II CCD

One-piece body and amazingly compact design

22 (H) x 22 (W) x 64 (D) mm, 51 g

(^7/8 x ^7/8 x 2 ^5/8 inches, 2 oz)

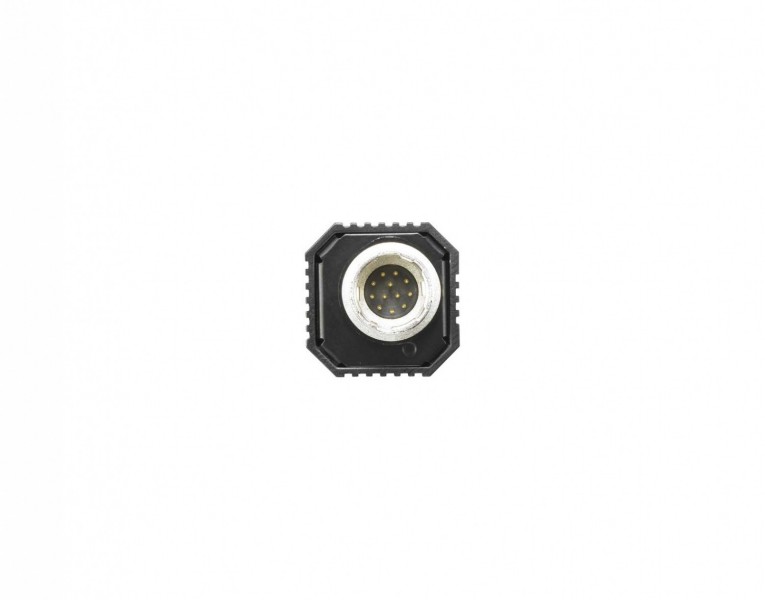

Selectable video outputs and external synch inputs

– Video outputs: VBS and Y/C

– External synch: HD/VD, VS, VBS

(no genlock)

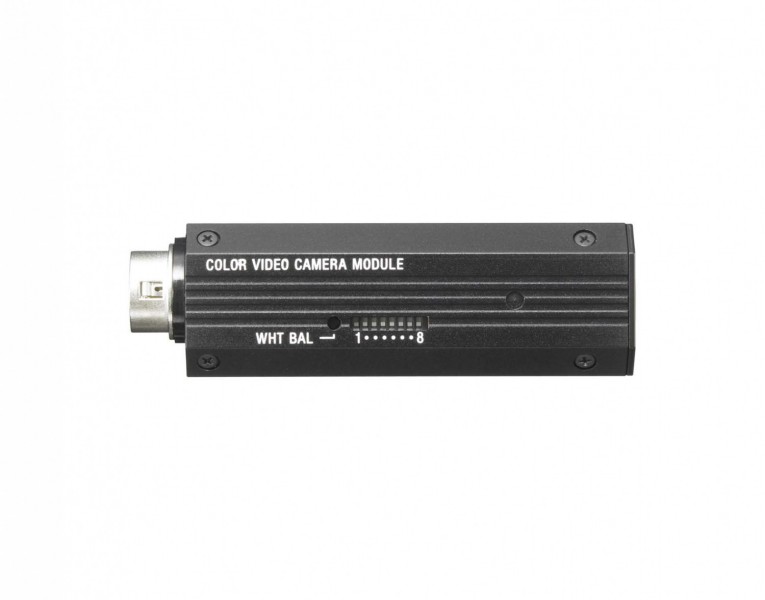

Easy camera setting by dip switch or RS-232C serial communication

Various image acquisition features:

– Selectable Auto Exposure and White Balance
