XC-56 Series
XC-56

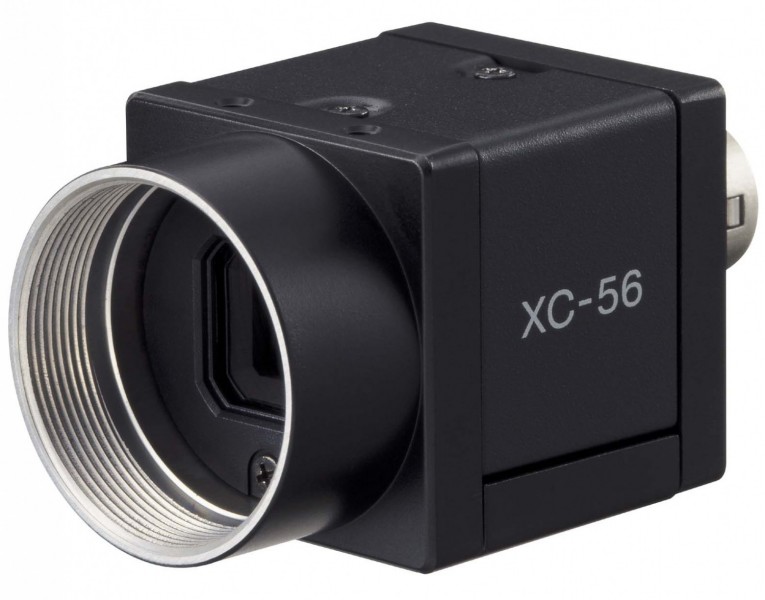

The XC-56 is a monochrome camera module that incorporates a 1/3 type progressive scan CCD. The XC-56 has VGA-class resolution (647 (H) × 493 (V)) output at 30 frames/sec. and 60 frames/sec. by the binning function.
Features
• 1/3 type progressive scan CCD
• Non-TV format
• Square pixel/ Full pixel read-out
• VGA-class resolution image output, 30 frames/sec
• Partial scanning function
• External trigger shutter
- Restart/Reset
- Mode 1 (Non-reset mode)
- Mode 2 (Reset mode)

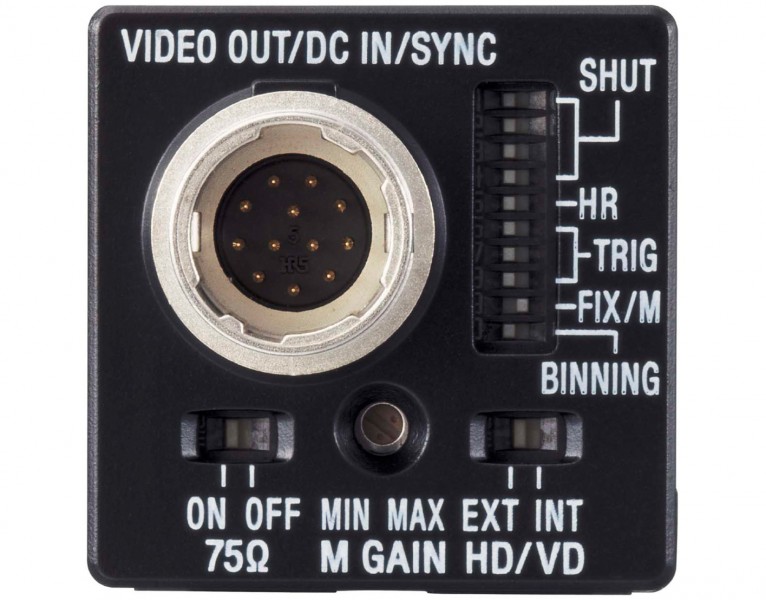

• Various settings are available on the rear panel
Accessories
Optional Accessories:
Compact camera adaptor
• DC-700CE
Tripod adaptor
• VCT-333I
12-pin camera cable (CE standard)
• CCXC-12P02N (2 m)
• CCXC-12P05N (5 m)
• CCXC-12P10N (10 m)
• CCXC-12P25N (25 m)
