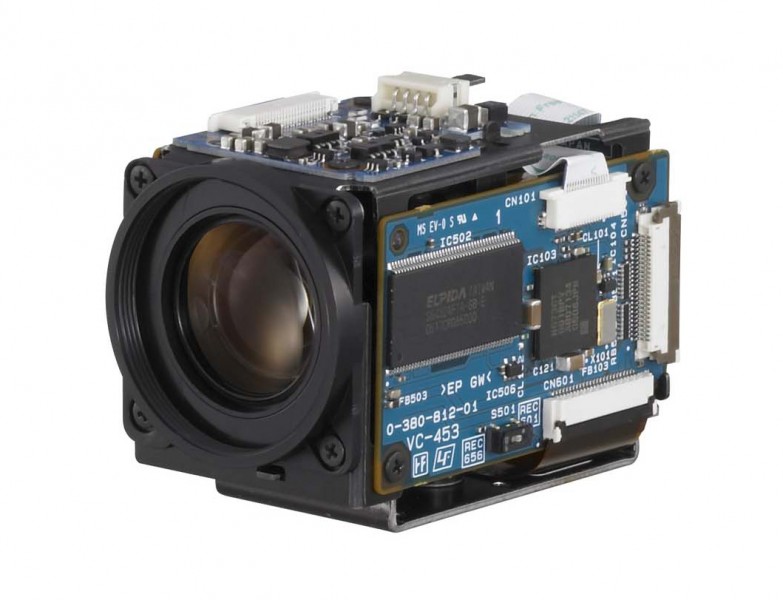

FCB-PV10

Sony is expanding its FCB camera series to include for the first time Progressive Scan (PS) colour block models. The FCB-PV Series features Progressive Scan CCD technology with square pixels, Primary Colour filters for precise colour reproduction, and a digital YUV 4:2:2 interface. The new FCB-PV480 colour block camera incorporates a 1/4-type Super HADTM PS CCD with an 18x optical zoom lens. The ultra-compact FCBPV10 colour block camera incorporates a 1/4-type Super HAD PS CCD with a 10x optical zoom lens. In addition, the FCB-PV480 camera can operate with a minimum illumination of 1.6 lux and is equipped with Auto ICR (IR cut filter removal) for near-infrared sensitivity. Both cameras output a VGA size image (640 x 480) and offer frame rates of 29.97 or 25

fps (switchable).

These FCB-PV cameras are the perfect match for IP camera applications that require a direct digital video connection. With their digital video interface, the FCB-PV series enables OEM s to easily integrate these cameras with fewer conversions such as A/D and I/P (interlace to progressive) in their systems, resulting in outstanding image quality and lower system cost.

The new Sony FCB-PV Series combines unique features with many convenient functions inherited from previous FCB models. These FCB-PV cameras are an optimum solution for high-speed shooting applications, such as traffic monitoring, license plate capture, and monitoring from mobile police vehicles, thanks to its progressive scan CCD sensor that produces high-quality images with crisp edges. These FCB-PV cameras are also a powerful solution when it comes to still image applications. With their Primary Colour filters and square pixel CCD, the FCB-PV cameras achieve precise colour reproduction and exceptional picture quality - a must for videoconferencing, low vision, photo booths, and document stands.

• Progressive Scan Colour Block Camera with Auto Focus Zoom Lens

• 1/4-type Super HAD CCD – Approximately 330,000 pixels

• Excellent Colour Reproduction with Primary Colour Filters

• 10x Optical Zoom Capability – FCB-PV10

• Digital Interface with Selectable Modes

• Clear Capture of Moving Objects Sharp, Clean Edges

• Advanced Spherical Privacy Zone Masking Function with Mosaic Effect

• Electronic-Flip (E-Flip) Function

• Alarm Functions

• Picture Freeze Function

• Spot AE Function

• Electronic Shutter/Slow Shutter (long time exposure)

• High-Speed Serial Interface (max. 38.4 Kb/s) and TTL Signal- Level Control (VISCATM protocol)

• Various Customizable Settings

• Internal Sync.

• Low Power Consumption(1.6 W when motors are inactive)

• 16-Bytes of Available Memory for Recording Data such as Product Serial Number

• Lead-free Solder and Halogenfree Printed Circuit Boards

Image sensor

1/4-type Super HAD CCD

Number of total pixels

Approx. 330,000 pixels [659(H) x 494(V)]

Image size

VGA (640 x 480)

Lens

10x zoom, f=4.2 mm (wide) to 42.0 mm (tele), F1.8 to F2.9

Viewing Angle (H)

46° (wide end) to 4.6° (tele end)

Minimum working distance

10 mm (wide end), 1,000 mm (tele end)

Sync system

Internal

Minimum illumination

2.3 lx (F1.8, 50 IRE)

S/N ratio

More than 50 dB

Electronic shutter

1/1 to 1/10,000 s (22 steps)

White balance

Auto, AT W, Indoor, Outdoor, One-push, Manual

Gain

Auto / Manual (-3 to 28 dB, 2 dB steps)

AE control

Auto, Manual, Priority mode (shutter priority & iris priority), Bright

Backlight compensation

On/Off

Privacy zone masking

On/Off (24 positions)

Focusing system

Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF

Picture effects

E-Flip, Black & White, Mirror Image

Video output

YUV 4:2:2 (16-bit/13.5 MHz or 8-bit/ 27.0 MHz)

Camera control interface

VISCA (TTL signal level), baud rate: 9.6 Kb/s, 19.2 Kb/s, 38.4 Kb/s, 1 or 2 stop bit selectable

Storage temperature

-20°C to 60°C (-4 to 140°F)

Operating temperature

0°C to 50°C (32 to 122°F)

Power consumption

6.0 V to 12.0 V DC 1.5 W (motors inactive), 2.7 W (motors active)

Dimensions (W x H x D)

37.3 x 43.8 x 61.0 mm (1 ^1/2 x 1 ^3/4 x 2 ^1/2 inches)

Lens adaptor screw

Yes

Mass

84 g (2.9 oz)

Supplied accessories

24P FFC, 4P-4P harness, Ferrite ring

Supplied accessories :

• 24P FFC
• 4P-4P harness
• Ferrite ring
