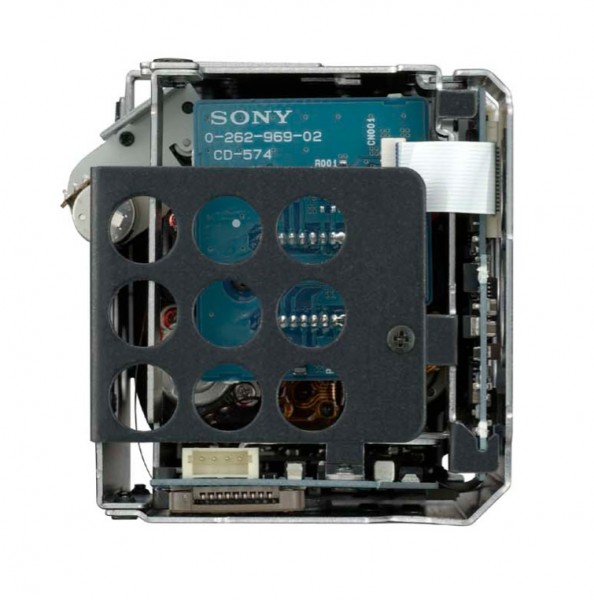

FCB-EX980/P
Sony's FCB-EX series of colour block cameras are equipped with an incredibly high 26x zoom lens which has a wide/telephoto horizontal field of view, making them ideally suited for use in security domes and traffic monitoring applications. These cameras incorporate an advanced Spherical Privacy Zone Masking feature which allows the masking function to be interlocked with the camera's pan/tilt/zoom movements, regardless of the camera angle, ensuring the individual’s privacy.
In addition, the FCB-EX series incorporates high-performance Digital Signal Processing (DSP) which provides enhanced picture quality and operability compared to conventional block cameras.
The FCB-EX980 series combines a high-sensitivity 1/4-type EXview HAD™ CCD and Sony's new powerful 26x zoom "SMART" lens which has a wide horizontal field of view.
In addition to the features above, these cameras are conveniently equipped with a variety of functions such as E-Flip, Alarm, Picture Freeze, and Auto ICR*1, which have all been inherited from earlier FCB-EX series cameras. Moreover, the entire FCB-EX series uses lead-free solder and halogen-free printed-circuit boards, making these cameras environmentally friendly.
Combining superb picture quality with a variety of unique and convenient features, the FCB-EX series cameras are the perfect match, both indoor and outdoor, for demanding security and monitoring applications.
Features
• 26x optical zoom capability*1
• Advanced Spherical Privacy Zone Masking function (max. 24 masking blocks)
• SMART lens control (Sony Modular Automatic Lens Reset Technology)
• Electronic-Flip (E-Flip) function
• Alarm function
• Auto ICR (IR Cut Filter Removal) Mode*2
• High-performance Digital Signal Processing (DSP)
• High-speed serial interface (max. 38.4 Kb/s) with TTL signal-level control (VISCA™ protocol)
• Equipped with key switch connector (CN601) for camera control with external equipment
• Various customisable settings
• Internal/External sync
• Low power consumption (1.6 W with motors inactive)
• EEPROM backup system without battery
• 16-bytes of free memory is available for recording data such as product serial numbers and camera/system ID numbers
• Lead-free solder and halogen-free printed-circuit boards
*1 FCB-EX980S/EX980SP, FCB-EX980/EX980P only
*2 FCB-EX980S/EX980SP, FCB-EX980/EX980P
FCB-EX480C/EX480CP only
N/A
| MTBF (excluding lens) | 58 |
|---|---|
| Power Voltage | 6 |
| Power Consumption | 1 |
| Operating temperature/ Humidity | 0 |
| Storage Temperature Humidity | -20 |
| Lens Diameter | 31 |
| Metal Frame | Y |
| Connector | 4 pin Harness, 9-Pin FFC |
| Video Output | VBS:1.0 Vp-p (Sync Negative) Y/C Output |
| Visca Model ID | 431 |
| External Key Switch | Y |
| Serial Interface | Stop bit 1/2 bit, 38.4 Kbps, 19.2 Kbps, VISCA protocol (TTL/CMOS), 9.6 Kbps |
| User Memory | 16 |
| Preset | 1 custom/power on preset, 6 positions |
| Aperture Control | 16 steps |
| Camera Operation Switch | Zoom WIDE, Zoom TELE |
| Alarm function | Yes |
| Interlock with pan, tilt and zoom | Yes (Spherical interlocking) |
| Privacy Zone masking Detail | (24 mask, 8 on screen, 160x120 matrix) |
| Privacy Zone Masking | Yes (with Spherical Pan/tilt) |
| Grid/Cross Disaply | Grid + cross |
| Picture Effects | Mirror, E-Flip, Neg. Art, Black & White |
| Character Generator | Yes |
| Spot AE | Y |
| Focusing System | Auto (Sensitivity :H-L), Interval, SMART lens control, Near Limit, Zoom Trigger AF, Manual, Infinity, One-push AF |
| Flicker Compensation | No |
| AE Control | Back Light Compensation, Slow Shutter - Auto/Manual, Exposure Compensation, Bright, Manual, Iris Priority, Full Auto, Shutter Priority |
| EV Compensation | -10 |
| White Balance | Manual WB, WB, One-Push, Outdoor, Indoor, ATW, Auto |
| Gain | 0 |
| Electronic Shutter Speed | 1 |
| AD | 0 |
| SN Ratio | 0 |
| Minimum Illumination 3 | 0 |
| Minimum Illumination 2 | 0 |
| Minimum Illumination | 1 |
| Recomended Illumination | 100 |
| Sync System | Internal/External (V-Lock) |
| Min Working Distance (tele) | 1500 |
| Min Working Distance (WIDE) | 320 |
| Angle of View H (WIDE) | 0 |
| Digital Zoom | 0 |
| Zoom Movement Speed | 0 |
| Lens - f stops | 0 |
| Lens - Detail | 0 |
| Lens | x26 Zoom |
| Horizontal Resolution | 460 |
| Picture Elements | 440000 |
| Signal System | PAL |
| Wide Dynamic Range | No |
| Slow Shutter Function | Y |
| Auto Slow Shutter | Y |
| Freeze | Y |
| ICR function | Y |
| Auto ICR function | Yes |
| Sensor Type | 1/4 type IT CCD |
| Sensor Ref | 0 |
| Weight | 230 |
| Width | 55 mm |
| Depth | 81 |
| Height | 57 mm |
| Order Quantity | 10 |
| Overvoltage protections on I/O | Yes |
