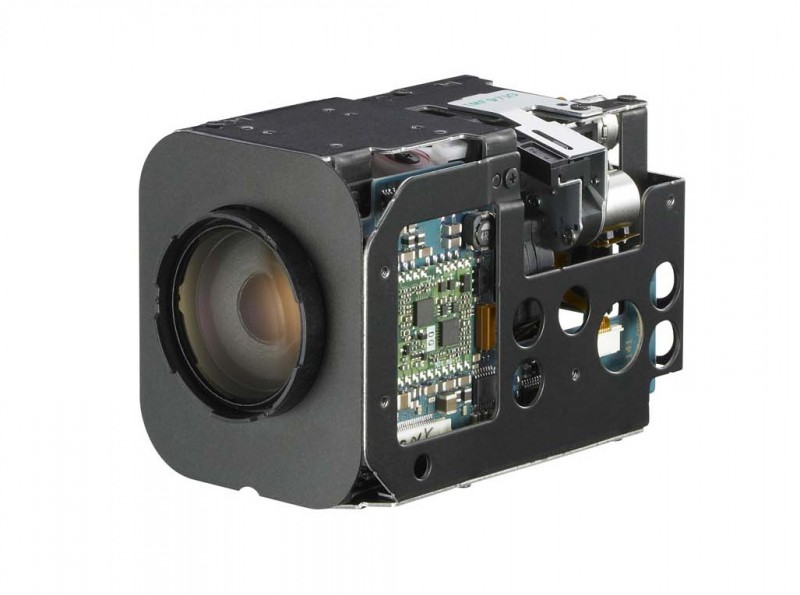

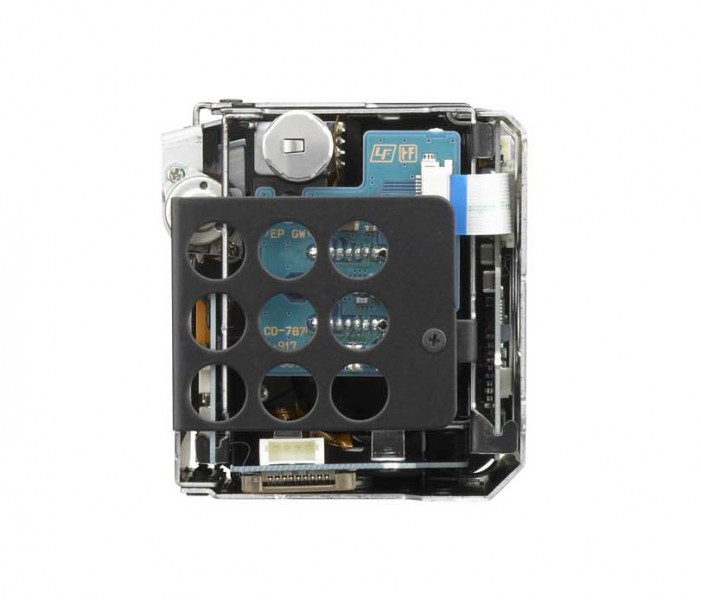

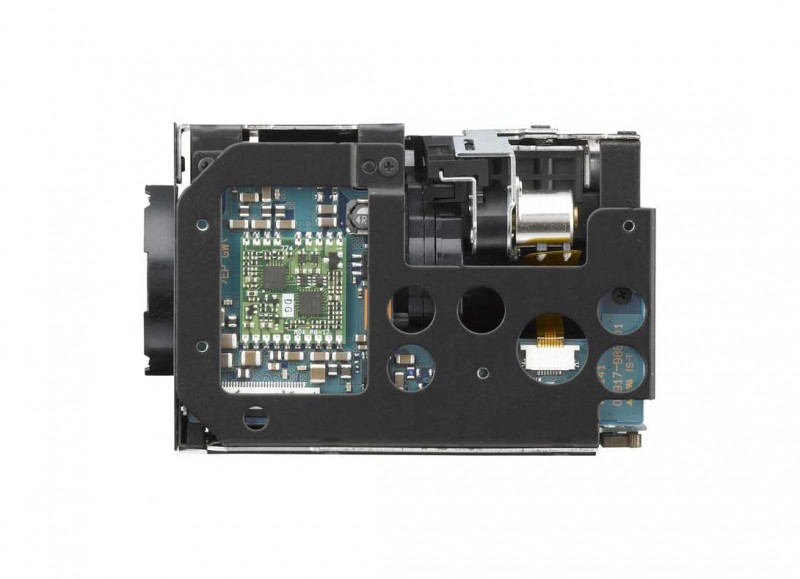

FCB-EX490E/EP

Features

Progressive Scan Broadens Capabilities -
In Progressive Scan mode, the video signal is processed by progressive scan to achieve clear images without any flickering effect. Since network cameras typically have backend systems based on progressive scan, you can maintain original picture quality without any conversion from interlace scan to progressive scan.

Various Operation Modes -

The camera has four operation modes so you can choose the best one depending on your priorities for the application - for example, sensitivity, resolution and other factors.

Wide Dynamic Range with New Technology -

<Auto Mode>

In Auto mode, the Wide Dynamic Range function is automatically turned on and off, depending on the visibility of the subjects and

background.

<Interlace Wide-D and Progressive Wide-D Modes>

For the Wide Dynamic Range function, there are two modes - Interlace mode which provides better performance with moving subjects, and Progressive mode which provides clearer images of still subjects.

Digital Output -

The camera is equipped with a digital interface (Y/Cb/Cr 4:2:2) which is comparable to ITU-R BT656.

The video output is free from signal deterioration, and no external analog/digital converter is required between the camera and other equipment.

Enhanced Noise Reduction -

By combining 2D and 3D noise reduction, the camera offers a wide selection of noise-reduction settings, from Level 1 to Level 5. This lets you choose the best level according to current conditions.

High-resolution Images -

The camera achieves a high horizontal resolution of 550 TV lines to reproduce very clear and detailed images.

Advanced White Balance –

For the White Balance function, there are two different modes:

Outdoor Auto mode and Sodium Vapor Lamp mode. These modes are designed to adapt to changing natural light outdoors, and to changing sodium vapor lamp lighting, respectively.

Extended Operation Temperature -

The camera can operate in a range of temperature from -5°C to 60°C.

Temperature Readout – NEW

The camera unit’s internal temperature can be read out via VISCA. This data can be used as reference data to activate peripherals such as a fan or heater inside the camera equipment.

Slow AE Response –

The camera’s Auto Exposure speed for adapting to changes in lighting conditions can be set as slow as required, even as slow as 10 minutes. The speed of adaptation should be slowed down under some conditions, such as an underground parking lot where the camera might otherwise miss some important images when car lights cause an abrupt change in lighting conditions.

Colour Enhancement –

Using the Colour Enhancement function, a full-colour image can be changed to black and white, and then inverted into two selected colours. This function can be used in applications for low-vision systems to assist people with weak eyesight to read using a camera and display, relieving them of eye strain.

Other Features

Gain Limit Setting
Zoom Limit Setting
Zoom Speed-up in Zoom Direct Mode (Focus Trace On/Off)
Focus Compensation in ICR Mode
Alarm Signal Output in Auto ICR Mode
Image Stabilization Hold

Auto IR-cut Filter Removal (Auto ICR)

Advanced Spherical Privacy
Zone Masking
Electronic Flip (E-Flip)
Multi-line On-screen Display
Video Motion Detection
Picture Freeze
SMART (Sony Modular Automatic Lens Reset Technology)

Specifications

Signal systems
NTSC (for FCB-EX490E)
PAL (for FCB-EX490EP)

Sync systems

Internal/External (V-lock)

Image sensor

1/4-type EXview HAD CCD

(Progressive Scan)

Effective picture elements

380,000 pixels (NTSC for FCB-EX490E)

440,000 pixels (PAL for FCB-EX490EP)

Lens

18x optical zoom lens

f=4.1 mm (wide) to 73.8 mm (tele)

F1.4 to F3.0

Digital zoom

12 x (216x with optical zoom)

Minimum object distance

10 mm (wide) to 800 mm (tele)

*Default: 290 mm

Horizontal viewing angle

48.0 degrees (wide) to 2.8 degrees (tele)

Horizontal resolution

550 TV lines

Focus systems

Auto (Sensitivity: normal, low), One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF, Focus Compensation in ICR On Mode

Minimum illumination

0.7 lx (F1.4, 50IRE)

Video output

ANALOG

VBS: 1.0 Vp-p (sync negative), Y/C

DIGITAL

Y/Cb/Cr 4:2:2 (comparable to ITU -R BT656)

Camera control

VISCA (TTL signal level)

Baud rate: 9.6 kbps, 19.2 kbps, 38.4 kbps

Stop bit: 1/2 bit selectable

Electronic shutter

1/1 sec to 1/10,000 sec, 22 steps

Gain

Auto/Manual/Max. Gain Limit (-3 dB to +28 dB, 2 dB steps)

Exposure control

Auto, Manual, Priority mode (shutter priority & iris priority), Bright, EV compensation, Slow AE

EV compensation

Yes

Backlight compensation

Yes

White balance

Auto, AT W, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (fix/auto), One-push, Manual

S/N ratio

More than 50 dB

Picture effects

E-Flip, Nega Art, Black & White, Mirror image, Colour Enhancement

Camera operation swich

Yes (Zoom Tele, Zoom Wide)

Power requirements

DC 6.0 V to 12.0 V

Power consumption

2.4 W (motors active: 4.4 W)

Operating temperature

-5°C to +60°C

Storage temperature

-20°C to +60°C

Mass

230 g (8.1 oz)

Dimensions (W x H x D)

50.0 x 57.5 x 88.5 mm

(2 x 2 ^3/8 x 3 ^1/2inches)

Wide-D Auto mode

Yes

Wide-D IS/PS mode

Yes

Image Stabilisation

No

StableZoom

No

Digital output

Yes

Enhanced Noise Reduction

Yes

Auto ICR

No

Spherical Privacy Zone Masking

Yes

Motion Detection

Yes

Alarm

Yes

Slow AE response

Yes (Longer than 10 minutes)

Picture freeze

Yes

Slow shutter

Yes

Temperature readout

Yes

Title display

Yes (20 characters/line, max. 11 lines)

Camera mode display

Yes (English*/Chinese) *default

Key switch control

Yes

Multi-line OSD

Yes

E-flip

Yes

Flicker Cancel

Yes (Auto for FCB-EX490E)

MTBF (excluding lens)	49
Power Voltage	6
Power Consumption	2
Operating temperature/ Humidity	-5
Storage Temperature Humidity	-20
Lens Diameter	34
Metal Frame	Y
Connector	12-pin FFC, 4 pin Harness, 9-Pin FFC
Video Output	Y/C ITU-R BT656 Style, VBS: 1.0 Vp-p (sync negative)
Visca Model ID	457
External Key Switch	Y
Serial Interface	Stop bit 1/2 bit, 38.4 Kbps, 19.2 Kbps, VISCA protocol (TTL/CMOS), 9.6 Kbps
User Memory	16
Preset	1 custom/power on preset, 6 positions
Aperture Control	16 steps
Camera Operation Switch	Zoom WIDE, Zoom TELE
Alarm function	Yes (Motion detection with 4 zones)
Interlock with pan, tilt and zoom	Yes (Spherical interlocking)
Privacy Zone masking Detail	(24 mask, 8 on screen, 160x120 matrix, mosaic)
Privacy Zone Masking	Yes (with Spherical Pan/tilt)
Grid/Cross Disaply	Yes
Picture Effects	Color enhancement, Mirror, E-Flip, Neg. Art, Black & White
Character Generator	Yes (20 characters/line, max. 11 lines)
Spot AE	Y
Focusing System	Focus Compensation with IR lighting, Near Limit, Zoom Trigger AF, Manual, Interval AF, Infinity, One-push AF, Auto (Sensitivity: normal-low)
Flicker Compensation	Yes
Noise Reduction	5 steps
AE Control	Back Light Compensation, Slow Shutter - Auto/Manual, Exposure Compensation, Slow AE, Bright, Manual, Iris Priority, Full Auto, Shutter Priority
EV Compensation	-10
White Balance	Manual, One-push, Sodium Vapor Lamp Fix/Auto, Outdoor Auto, Outdoor, Indoor, ATW, Auto
Gain	0
Electronic Shutter Speed	1
AD	0
SN Ratio	50
Minimum Illumination 2	0
Minimum Illumination	0
Recomended Illumination	100
Sync System	Internal/External (V-Lock)
Min Working Distance (tele)	800
Min Working Distance (WIDE)	10
Angle of View H (WIDE)	0
Digital Zoom	0
Zoom Movement Speed	0
Lens - f stops	0
Lens - Detail	0
Lens	x18 Zoom
Horizontal Resolution	550
Picture Elements	440000
Signal System	PAL(Interlaced-PsF mode) or Progressive Scan
Wide Dynamic Range	Yes (ON/OFF/Auto)
Slow Shutter Function	Y
Auto Slow Shutter	Y
Freeze	Y
ICR function	Y
Auto ICR function	Yes (adjustable threshold)
Sensor Type	1/4 type PS CCD
Sensor Ref	0
Weight	230
Width	52 mm
Depth	88
Height	57 mm
Order Quantity	10
Overvoltage protections on I/O	VBS, V-LOCK
