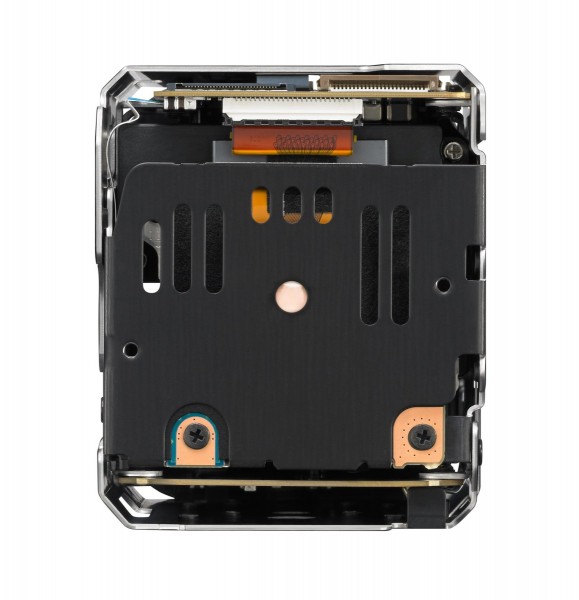

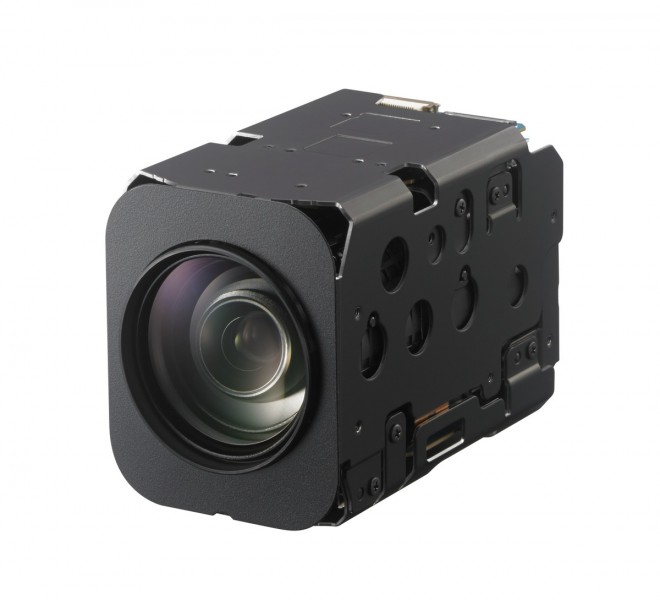

FCB-EV7310
Full HD 20x Colour Camera Block
In response to growing demand for high-quality, high-resolution images, Sony is adding three new 20x optical zoom colour models to its FCB-EV Series camera block line-up.
These cameras offer excellent picture quality, thanks to the use of Exmor™ CMOS image sensors and high-performance optical zoom lenses. Now Sony’s FCB-EV Series covers a range of products from 10x to 30x, HD and Full-HD, and with or without analog video output, allowing you to select the right camera according to your specific and varying needs.
All of these cameras inherit a multitude of features from Sony’s world-renowned FCB Series including Wide-D*1, Auto ICR, and Spherical Privacy Zone Masking. These useful featuresare suitable for an array of applications and designed to satisfy all your needs.
*1 Wide dynamic range.
Capture crisp, clear Full-HD (1080/60p) images*2
The high-performance 1/2.8-type Exmor CMOS image sensor achieves superb Full-HD (1920 x 1080) picture quality, even in lowlight environments. Progressive scanning assures smoother pictures with reduced blur – ideal for capturing the detail in moving images.
Fast, bright lens with rapid 30x optical zoom*3
The FCB-EV7500 and FCB-EV5500 are equipped with a bright F1.6 maximum aperture and 30x optical zoom range. Fast zoom operation (from wide end to tele) is ideal for smooth, rapid transitions from wide area coverage to detailed close-ups in security and surveillance applications.
Get a steadier picture with image stabilizer*4
The camera’s built-in image stabilizer function counters the eff ect of blurred, shaky images caused by low-frequency vibration. This is useful for outdoor surveillance and traffic monitoring applications, particularly if the camera is used on a bridge or mounting pole where it is subjected to wind or mechanical vibration.
StableZoom
Image stabilizer and optical/digital zoom are combined to enhance picture quality while maintaining the original horizontal angle of view. This ensures no compromise in image size, and reduces blurring.
2D/3D noise reduction
Advanced noise reduction technology filters noise from the image for clearer results, especially in low-light conditions. Noisereduction can be selected from five levels to suit a wide range of operating environments.
See more clearly with Visibility Enhancer
Picture quality is enhanced dynamically and adaptively on a pixel-by-pixel basis while continuously adapting to the scene within the given dynamic range.
Wide dynamic range
Wide-D image processing technology gives the ability to see clear, detailed images in high-contrast or backlit environments. All models now support an exceptionally wide 130 dB dynamic range, which is activated via VISCA command.*5
De-fog
The de-fog feature allows clearer and natural viewing in foggy or misty scenes. When this feature is activated, the camera detects the haze level and automatically applies the required effects. Depending on user requirements, the level of these effects can be adjusted via VISCA command.
HLC (High Light Compensation)
HLC technology helps to improve, for example, the visibility of license plates when bright headlights are shot under low-light conditions. The bright parts in the image are masked and compensated for automatically to achieve better visibility.
Clear vision around the clock with Day/Night
Benefit from optimized picture quality in changing light conditions – a frequent challenge in around-the-clock security operations. In high sensitivity mode the FCB-EV5300 can operate eff ectively in lighting levels as low as 0.05 lx (ICR off ).
Auto ICR (Auto IR-cut Filter Removal)
In low-light conditions, the camera automatically switches from Day to Nightmode, removing the IR-cut filter to boost sensitivity for clear pictures in near-darkness. The spherical privacy zone masking feature enables areas of view to be selectively masked for privacy. Masked areas are automatically interlocked with the camera’s pan/tilt/zoom movements.
Choice of HD and SD output modes
Video signal outputs are available in a range of HD (digital and analog) and SD formats, reducing integration cost and complexity by avoiding the need for additional analog/ digital converters. Video output modes can be changed ‘on the fly’ during normal operation, without a hardware reboot of the camera.
One-cable connection for simpler integration
A single cable carries HD video signals plus VISCA communication and the power supply. Integration fl exibility is further supported by both 30-pin micro coaxial (digital output) and 24-pin FFC (analog output) interfaces.
Wide range of features for versatile operation
Versatile operation is ensured by a wide range of functions and adjustments, including: White Balance modes; Picture effects (E-Flip, Nega Art, Black & White, Mirror Image, Colour Enhancement); Motion Detection/Alarm; Picture freeze; Temperature readout; Slow AE response; Electronic shutter/ slow shutter; and Title display/Camera mode display (English).
Coming soon
| MTBF (excluding lens) | 0 |
|---|---|
| Power Voltage | 6 |
| Power Consumption | 3 |
| Operating temperature/ Humidity | -5 |
| Storage Temperature Humidity | -20 |
| Lens Diameter | 37 |
| Metal Frame | Y |
| Connector | 24-pin FFC, 30 pin LVDS |
| Video Output | HD: Digital (Y/Cb/Cr 4:2:2) Dual/single LVDS SD: V |
| Visca Model ID | 46 |
| Serial Interface | 115.2 Kbps Stop bit 1/2 bit, 38.4 Kbps, 19.2 Kbps, VISCA protocol (TTL/CMOS), 9.6 Kbps |
| User Memory | 16 |
| Preset | 16 positions, 1 custom/power on preset |
| Aperture Control | 16 steps |
| Alarm function | Yes (Motion detection with 4 zones) |
| Interlock with pan, tilt and zoom | Yes (Spherical interlocking) |
| Privacy Zone masking Detail | (24 mask, 8 on screen, 160x90 matrix) |
| Privacy Zone Masking | Yes (with Spherical Pan/tilt) |
| Grid/Cross Disaply | Yes |
| Picture Effects | HLC, Sat/Hue Adjust, gamma, Black level, 3 levels), Visibility enhancer, Defog (Auto, Color enhancement, Mirror, E-Flip, Neg. Art, Black & White |
| Character Generator | Yes (20 characters/line, max. 11 lines) |
| Spot AE | Y |
| Focusing System | Focus Compensation with IR lighting, Near Limit, Zoom Trigger AF, Manual, Interval AF, Infinity, One-push AF, Auto (Sensitivity: normal-low) |
| Flicker Compensation | No |
| Noise Reduction | 6 steps (Adaptative 3DNR) |
| AE Control | Min shutter limit, Back Light Compensation, Slow Shutter - Auto/Manual, Exposure Compensation, Slow AE, Bright, Manual, Iris Priority, Full Auto, Shutter Priority |
| EV Compensation | -10 |
| White Balance | Sodium Vapor Lamp Fix/Auto/outdoor, Manual, One-push, Outdoor Auto, Outdoor, Indoor, ATW, Auto |
| Gain | 0 |
| Electronic Shutter Speed | 1 |
| AD | 0 |
| SN Ratio | 0 |
| Minimum Illumination 3 | 0 |
| Minimum Illumination 2 | 0 |
| Minimum Illumination | 0 |
| Recomended Illumination | 100 |
| Min Working Distance (tele) | 1000 |
| Min Working Distance (WIDE) | 10 |
| Angle of View H (WIDE) | 0 |
| Digital Zoom | 0 |
| Zoom Movement Speed | 0 |
| Lens - f stops | 0 |
| Lens - Detail | 0 |
| Lens | x20 Zoom |
| Horizontal Resolution | 0 |
| Picture Elements | 2 |
| Signal System | 1080p/29.97, HD: 1080p/60, 1080p/59.94, 1080p/50, 1080i/60, 1080p/30, 720p/59.94, 1080i/50, 1080i/59.94, 1080p/25, SD (NTSC-PAL), 720p/25, 720p/29.97, 720p/30, 720p/50, 720p/60 |
| Wide Dynamic Range | No |
| Slow Shutter Function | Y |
| Auto Slow Shutter | Y |
| Freeze | Y |
| ICR function | Y |
| Auto ICR function | Yes (adjustable threshold) |
| Sensor Type | 1/2.8-type CMOS |
| Sensor Ref | 0 |
| Weight | 270 |
| Width | 50 mm |
| Depth | 87 |
| Height | 60 mm |
| Order Quantity | 10 |
